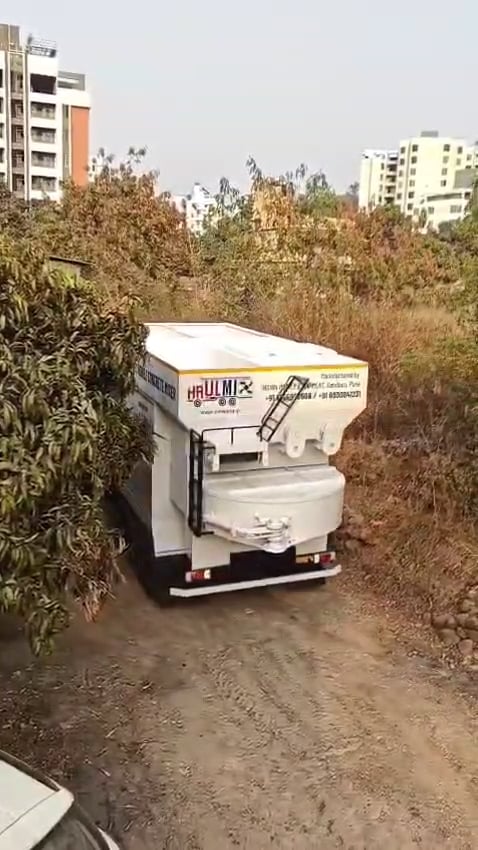

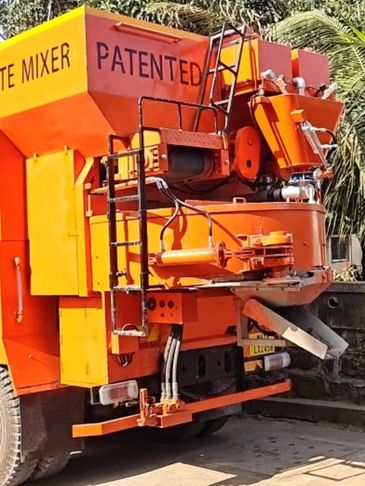

HAULMIX- TRUCK MOUNTED CONCRETE MIXER

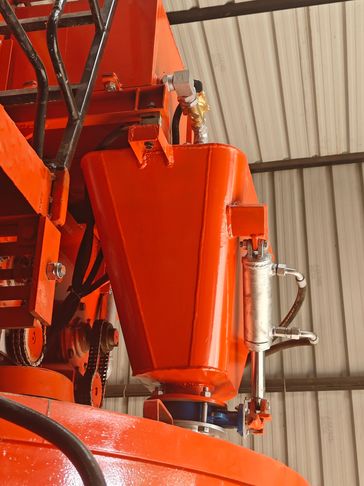

HAULMIX- Water & Admix weigher
High Chemical admixture dispersion
High Chemical admixture dispersion

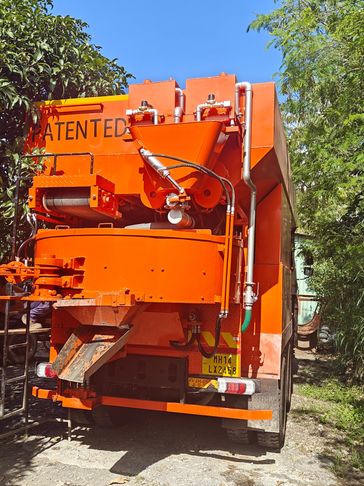

HAULMIX Fully Automatic Concrete Mixers produce Concrete by weighing all ingredients of concrete on weight basis using electronic loadcells. A liquid weigh batcher weighs water and two chemical additives in a separate weigh hopper onboard the vehicle. This gives high quality consistent concrete each batch as per the design mix.
High Chemical admixture dispersion
High Chemical admixture dispersion
High Chemical admixture dispersion
Since the chemical additives are weighed and added to the water hopper, a complete dispersion of the chemical additives is achieved. The mixture of water and chemical additives is added to the mixer in a few seconds after the fine aggregates, and binders are added to the mixer while aggregates are added after another small delay.
Cycle time in seconds
High Chemical admixture dispersion
Cycle time in seconds
High speed hydraulic motors, high flow patented prioritized hydraulic drive system, Different weigh scales for solids and liquids, high flow water pump, large diameter admix discharge pipe, large diameter butterfly valve for water weigh hopper, ensure that the complete batching and mixing cycle is completed in a few seconds.
HIGH QUALITY FRESH CONCRETE
Fully Automatic Control Panel
Display showing stepwise operation
Display showing stepwise operation
The HAULMIX Truck-mounted Mobile Concrete mixer is adapted to have a fully automatic PLC controlled operation. The PLC panel integrates the Patented Hydraulic circuit and electronic load cells and works on 24 VDC supply
Display showing stepwise operation
Display showing stepwise operation
Display showing stepwise operation
The display is designed to show and record each step of the cycle. It stores the cycle data, history and PDF batch-sheet. Concrete is produced by weighing each ingredient on weight basis including water and chemical additives.
M40 mix with OPC and FA
Display showing stepwise operation
M40 mix with OPC and FA
The picture shows the HAULMIX machine producing M40 grade of concrete with OPC and FA. HAULMIX machine can produce any design mix as all materials are batched on weight accurately and mixed in a high speed high torque PAN mixer.
